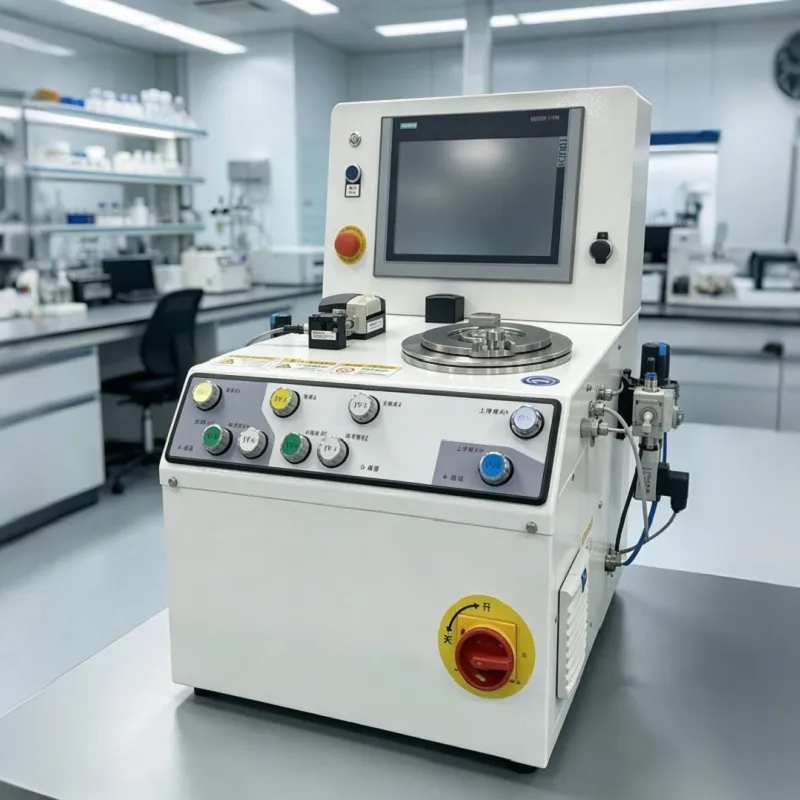

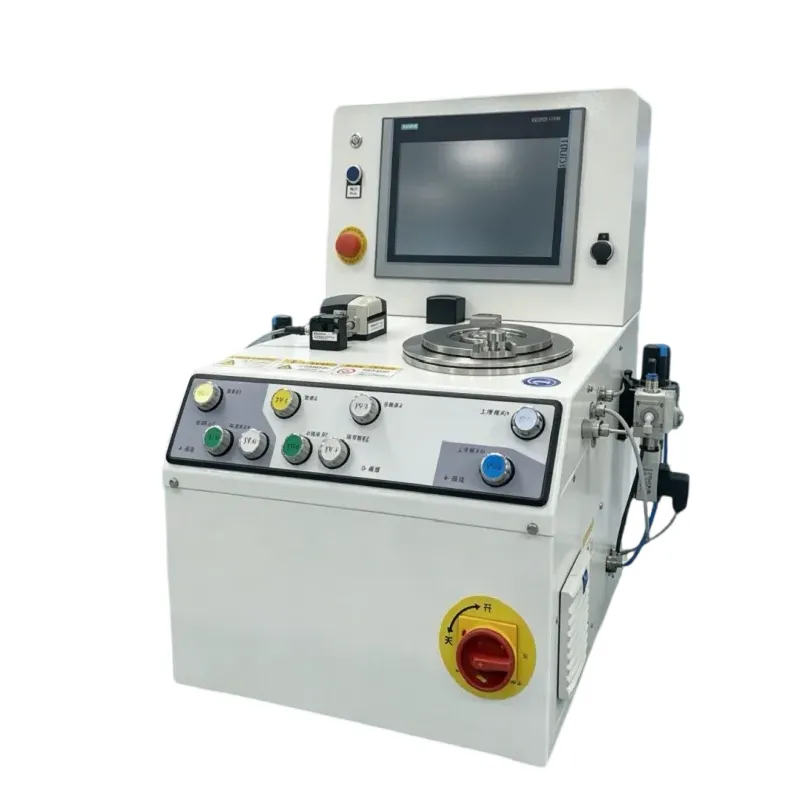

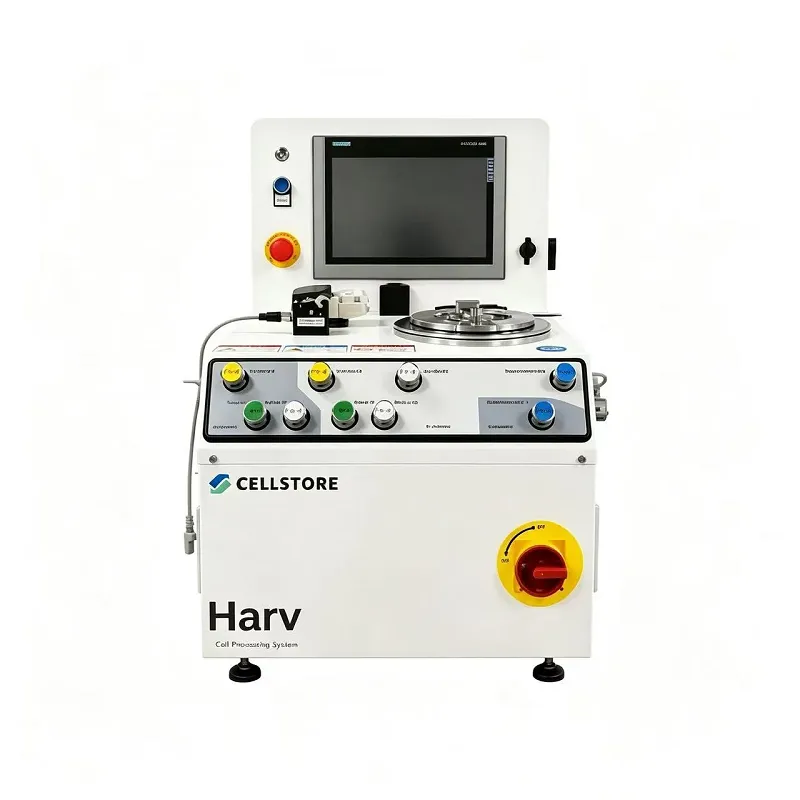

CellStore Harv Cell Processing System

CellStore Harv is an automated cell harvesting and washing system designed for closed, scalable, and programmable cell processing workflows. By integrating centrifugation, fluid transfer, washing, concentration, and medium exchange into a controlled single-use process, Harv helps reduce manual handling, improve batch-to-batch consistency, and support process development from research-scale production to GMP-oriented manufacturing.

Key Advantages

• Automated and Programmable Workflow

  Harv automates key harvesting, washing, concentration, and media exchange steps, helping reduce operator-dependent variability and improve process consistency.




• High Processing Capacity
  With a maximum RCF of 4,000 × g, flow rate up to 1,000 mL/min, and processing volumes up to 200 L, Harv supports scalable cell processing workflows.




• Flexible Process Configuration
  More than 120 user-configurable parameters support diverse cell types and customized workflows, including NK cells, T cells, MSCs, CHO cells, and other suspension cell culture processes.




• Closed Single-Use Fluid Path
  Pre-sterilized single-use kits provide a closed fluid path for aseptic cell processing. Pressure-decay integrity testing helps verify kit integrity before, during, and after operation.




• Designed to Support GMP-Oriented Workflows
  User access management, audit trail, electronic records, data logging, and data export features help support controlled and traceable cell processing operations.

Workflow Applications

CellStore Harv can support multiple cell processing steps, including:

• Cell harvesting and concentration

• Cell washing and media exchange

• Cryopreservation medium exchange

• Magnetic bead incubation and removal support

• Clarification and harvest support for suspension cell culture workflows

Representative Cell Processing Performance

Harv demonstrated high recovery and maintained post-processing viability across multiple tested cell types.

Data shown are representative test results. Actual performance may vary depending on cell type, culture condition, process volume, kit configuration, and user-defined parameters.

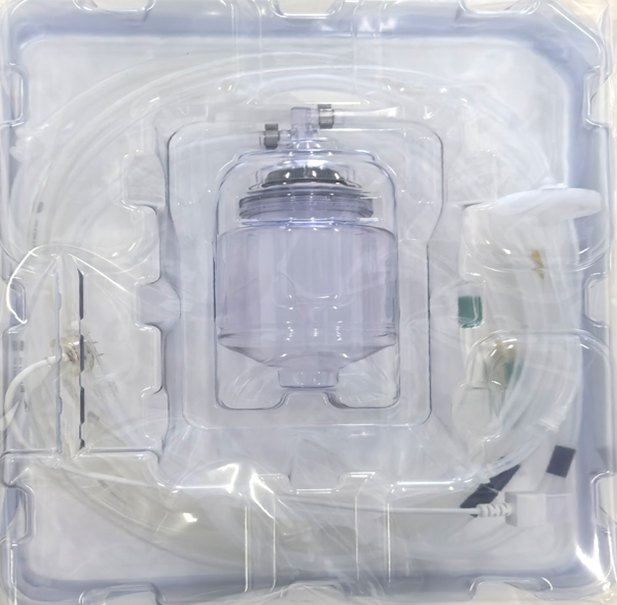

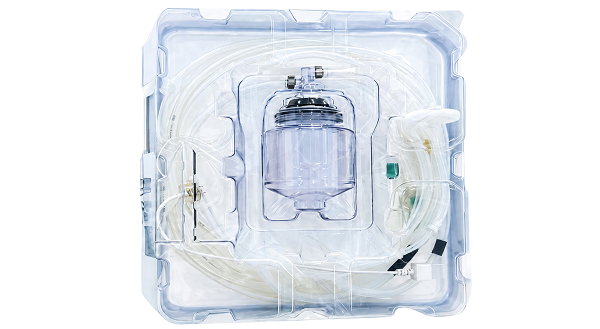

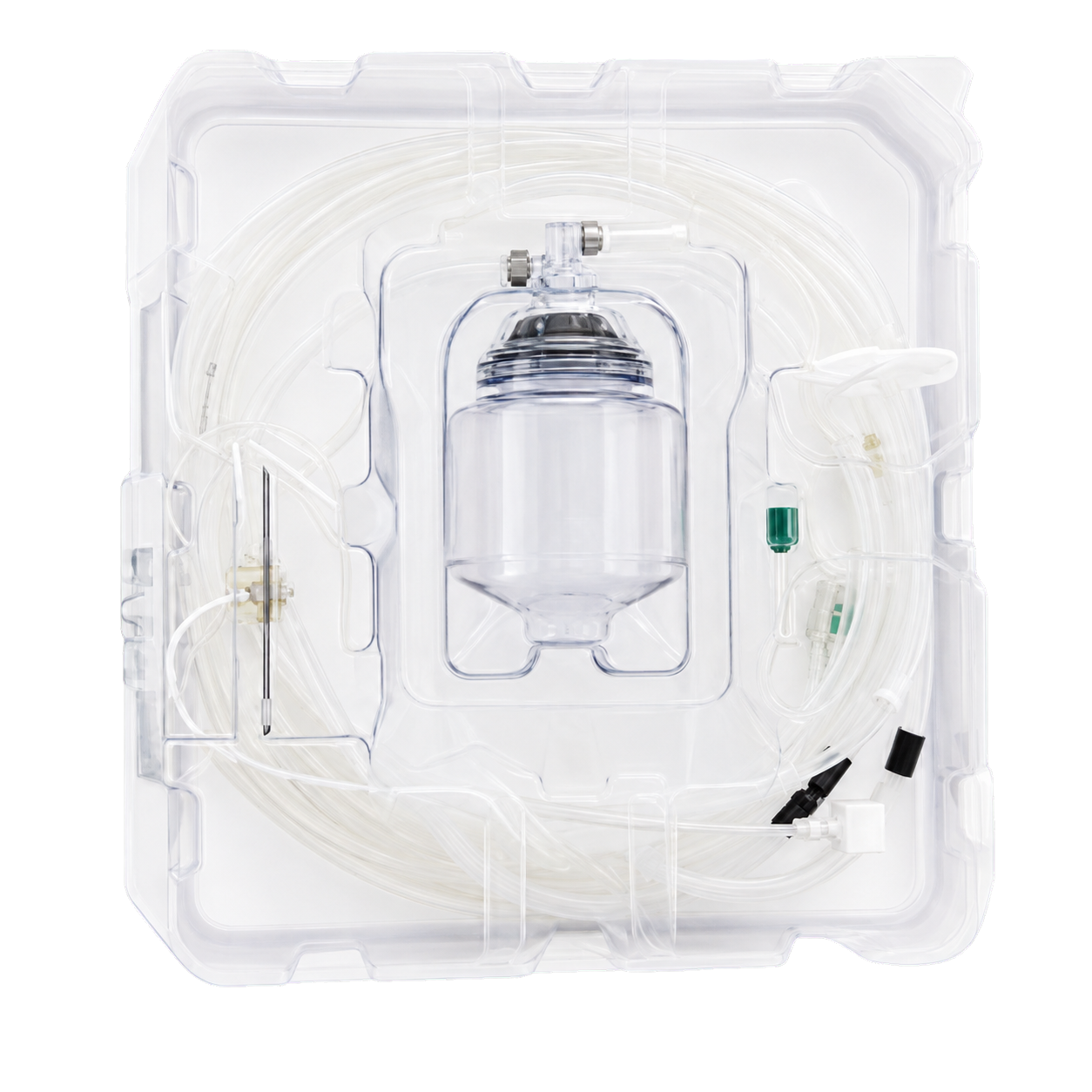

Closed, Pre-Sterilized Single-Use Kit

The single-use kit provides a closed fluid path for cell harvesting, washing, concentration, and medium exchange. Pre-sterilized and ready to use, the kit helps eliminate CIP/SIP requirements and supports aseptic processing workflows.

Pressure-decay integrity testing can be performed to support process safety and verify kit integrity before, during, and after operation.

Technical Specifications

Ordering Information

System

Single-Use Kits

Need to Discuss Your Cell Processing Workflow?

Tell us your cell type, starting volume, target final volume, washing steps, and process requirements. Our team will help recommend a suitable Harv configuration and single-use kit.

Request a quote or product brochure
