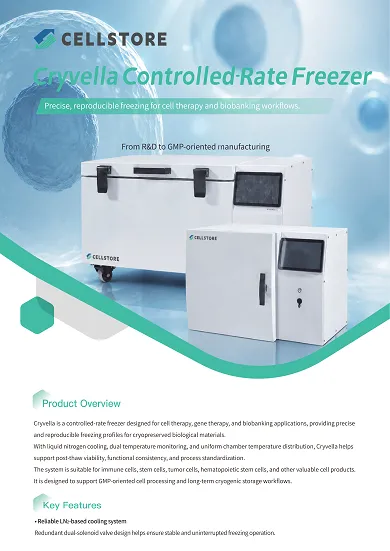

Cryvella is a controlled-rate freezer designed for cell therapy, gene therapy, and biobanking applications, providing preciseand reproducible freezing profiles for cryopreserved biological materials.
With liguid nitrogen cooling, dual temperature monitoring, and unltorm chamber temperature distribution, Cryvella helpgsupport post-thaw viability, functional consistency, and process standardization.
The system is suitable for immune cells, stem cells, tumor cells, hematopoietic stem cells, and other valuable cell productsIt is designed to support GMP-oriented cell processing and long-term cryogenic storage workflows.
Reliable LNz-based cooling system
Redundant dual-solenoid valve design helps ensure stable and uninterrupted freezing operation.
Wide temperature and cooling range
Temperature range from -180'C to +50'c, with programmable cooling rates from 0.1 to 99.9°c/min.
Dualprobe temperature monitoring
Chamber and sample temperature probes enable real-time temperature protile monitoring and in-situ probe calibration
Excellentchamber temperature uniformity
Chamber temperature uniformity within ±2°C supports consistent freezing conditions across samples.
Flexible protocol management
6 preset programs and up to 200 user-defined programs support diverse cryopreservation workflows.
Complete data recording and export
Automatic recording of temperature curves, run logs, and alarm events, with PDF export for traceability.
Integrated touchscreen control
10-inch touchscreen enables protocol editing, run monitoring, and historical data review without an external Pc
Enhanced operationalsafety
Optional electronic door lock helps prevent accidental door opening and temperature fluctuation during operation.
Cleanroom-compatible exterior
SUS304 stainless steel interior and powder-coated exterior support use in controlled environments
Validation support
Supports1Q/0Q/PQ validation for GMP-oriented manufacturing workflows.
| Specification | Cryvella-17 | Cryvella -34 | Cryvella-51 |
| 2 mL Cryovial Capacity | 380 | 810 | 1190 |
| 5 mL Cryovial Capacity | 228 | 486 | 714 |
| 50 mL Cryopreservation Bag Capacity | 30 | 60 | 90 |
| 250 mL Cryopreservation Bag Capacity | 10 | 20 | 30 |
| Temperature Range | -180-50°C | -180-50°C | -180-50°C |
| Cooling Rate | 0.1-99.9 °C/min | 0.1-99.9 “C/min | 0.1-99.9 “C/min |
| Warming Rate | 0.1-12 °C/min | 0.1-12°C/min | 0.1-12°C/min |
| LNz Consumption per Program | 12 | 15 | 20 |
| Temperature Uniformity | <2°C | <2°C | <2° |
| InteriorDimension,WxDxH | 180x305x330 | 330x305x330 | 510x305x330 |
| Exterior Dimension,W x Dx H | 866x625x550 | 1036x625x330 | 1216x625x550 |
| Chamber Volume | 17 | 34 | 51 |
| Net Weight | 81 | 91 | 101 |
| Maximum Power | 2500 | 3000 | 3000 |
| Power supply | AC 220 V, 50/60 HZ | ||
| Controller | 10-inch touchscreen & microprocessor | ||
| Available Programs | 6 preset + 200 user-defined | ||
